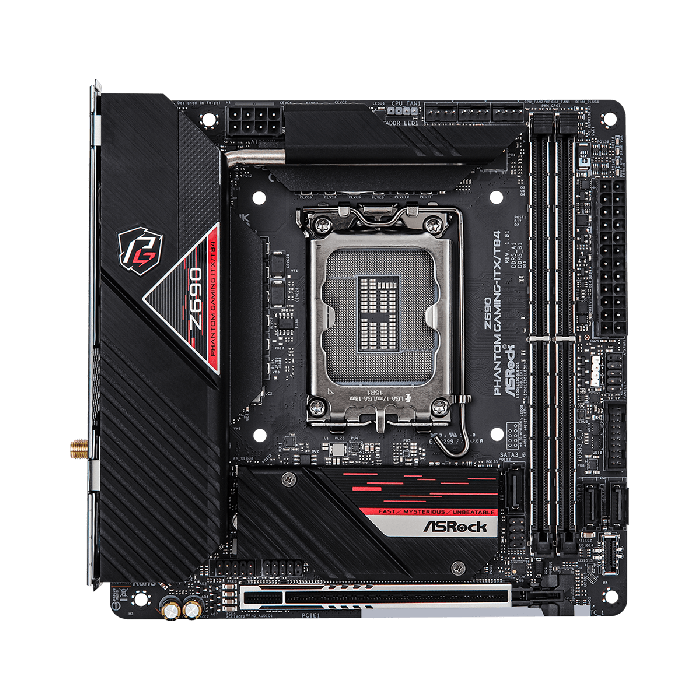

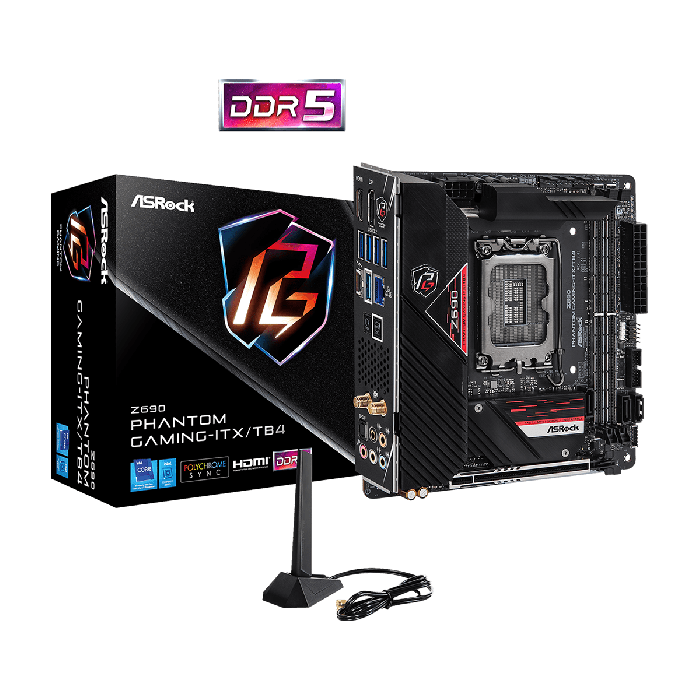

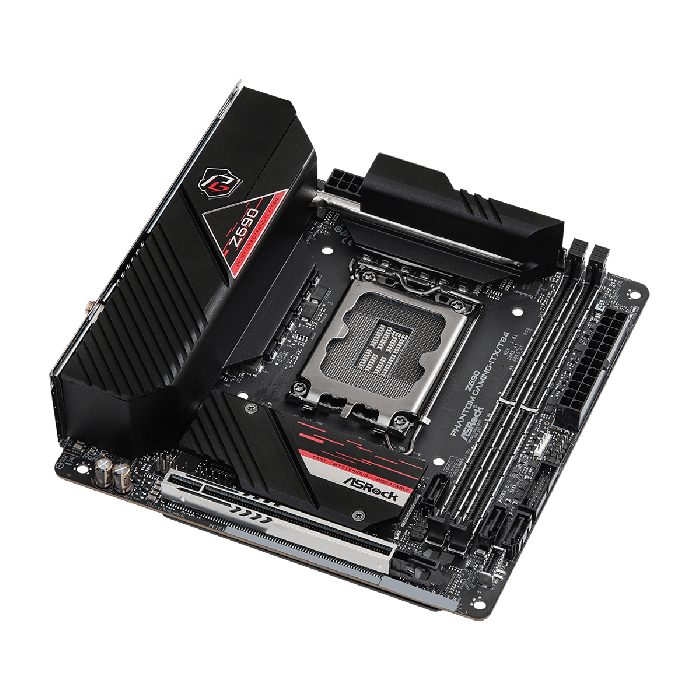

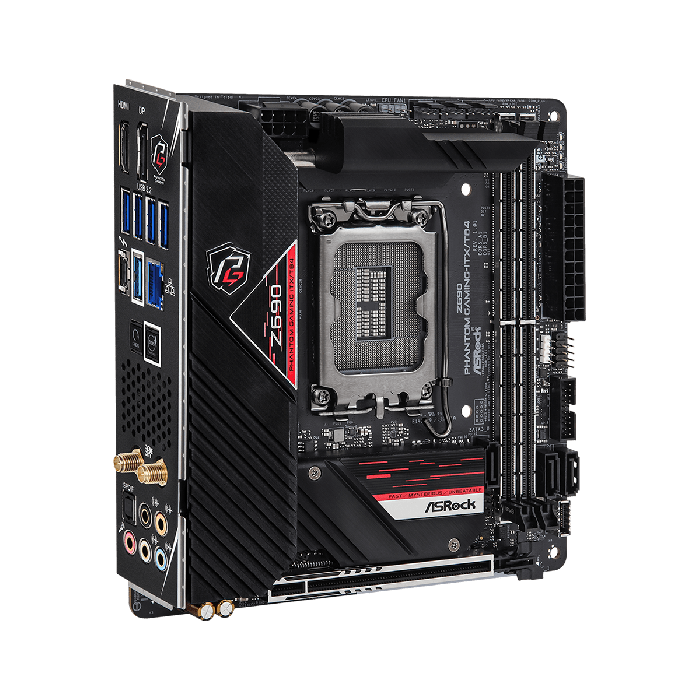

ASRock Z690 Phantom DDR5 WIFI 6E – Gaming Motherboard – ITX / TB4 – Black

Model No

ASRock Z690 Phantom DDR5 WIFI 6E – Gaming Motherboard – ITX / TB4 – Black

Part No

90-MXBI10-A0UAYZ

Chipset

Z690 Phantom

Unique Feature

ASRock USB 4.0

ASRock USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) ASRock USB 3.2 Gen2

ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)

ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

ASRock Super Alloy

Premium Power Choke

105A SPS (Smart Power Stage)

Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

I/O Armor

Matte Black PCB

High Density Glass Fabric PCB

10 Layer PCB

Socket Compatibility

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

Digi Power design

11 Power Phase design

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology

LAN & Wireless LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Killer E3100G

Supports Killer LAN Software

Supports Killer DoubleShot™ Pro

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

802.11ax Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ax

Supports Dual-Band 2×2 160MHz with extended 6GHz band support*

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.3 + High speed class II

Supports MU-MIMO

Supports Killer LAN Software

Supports Killer DoubleShot™ Pro

Memory Type

DDR5

Memory Compatibility

Dual Channel DDR5 Memory Technology

2 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*

Max. capacity of system memory: 96GB

Supports Intel® Extreme Memory Profile (XMP) 3.0

15μ Gold Contact in DIMM Slots

Storage Compatibility

CPU:

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

3 x SATA3 6.0 Gb/s Connectors

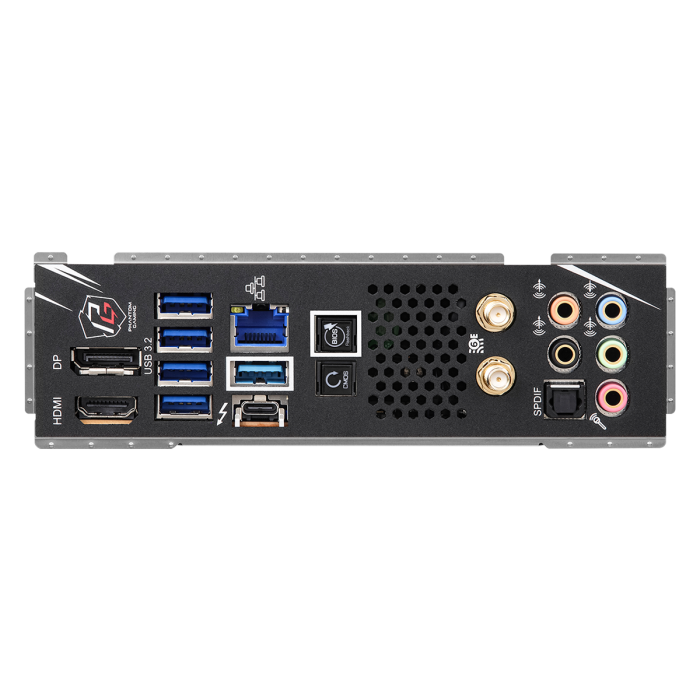

Back Panel I/O Ports

2 x Antenna Ports

1 x HDMI Port

1 x DisplayPort 1.4

1 x Optical SPDIF Out Port

4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)

1 x USB 3.2 Gen1 Port (Supports ESD Protection)

1 x USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)*

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

1 x Clear CMOS Button

1 x BIOS Flashback Button

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Connector

1 x Chassis Intrusion and Speaker Header

1 x RGB LED Header*

1 x Addressable LED Header**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

1 x Chassis Fan Connector (4-pin)*****

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector (15μ Gold Audio Connector)

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Warranty

1 Year ( As per Manufacturer Policy )
