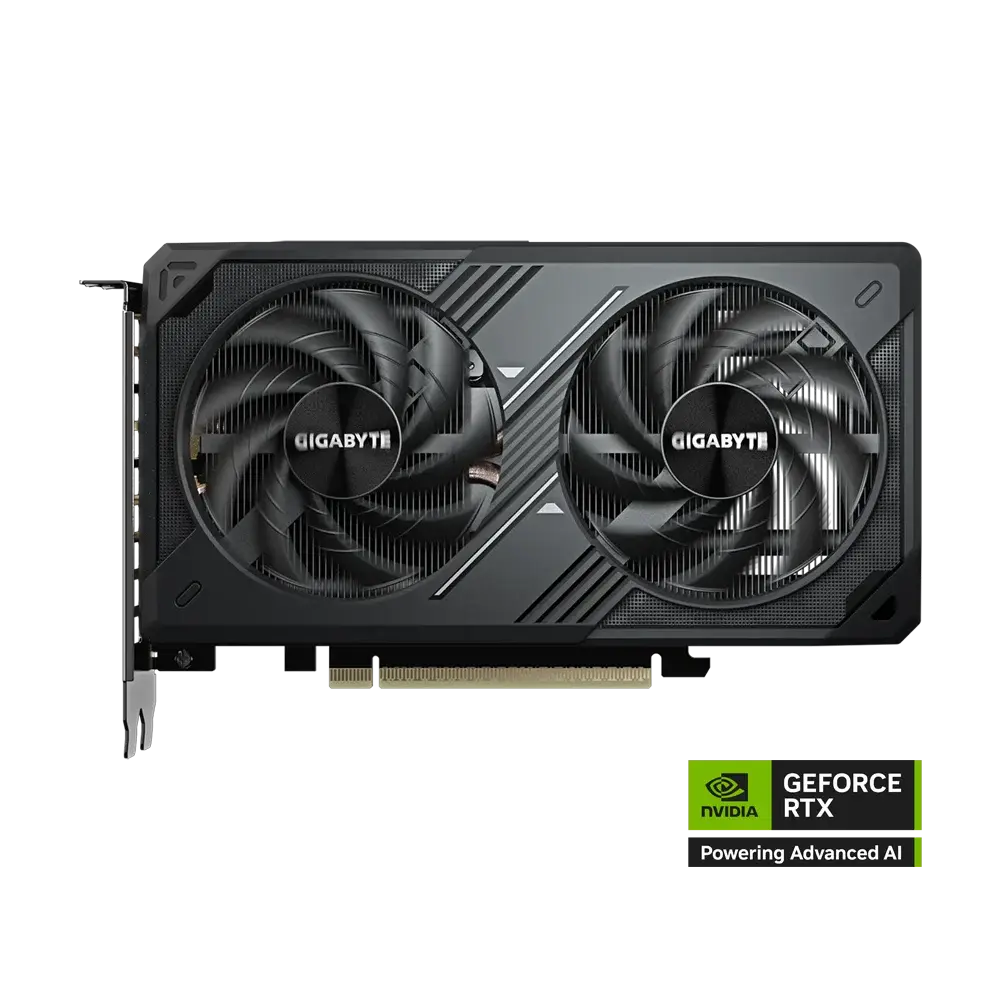

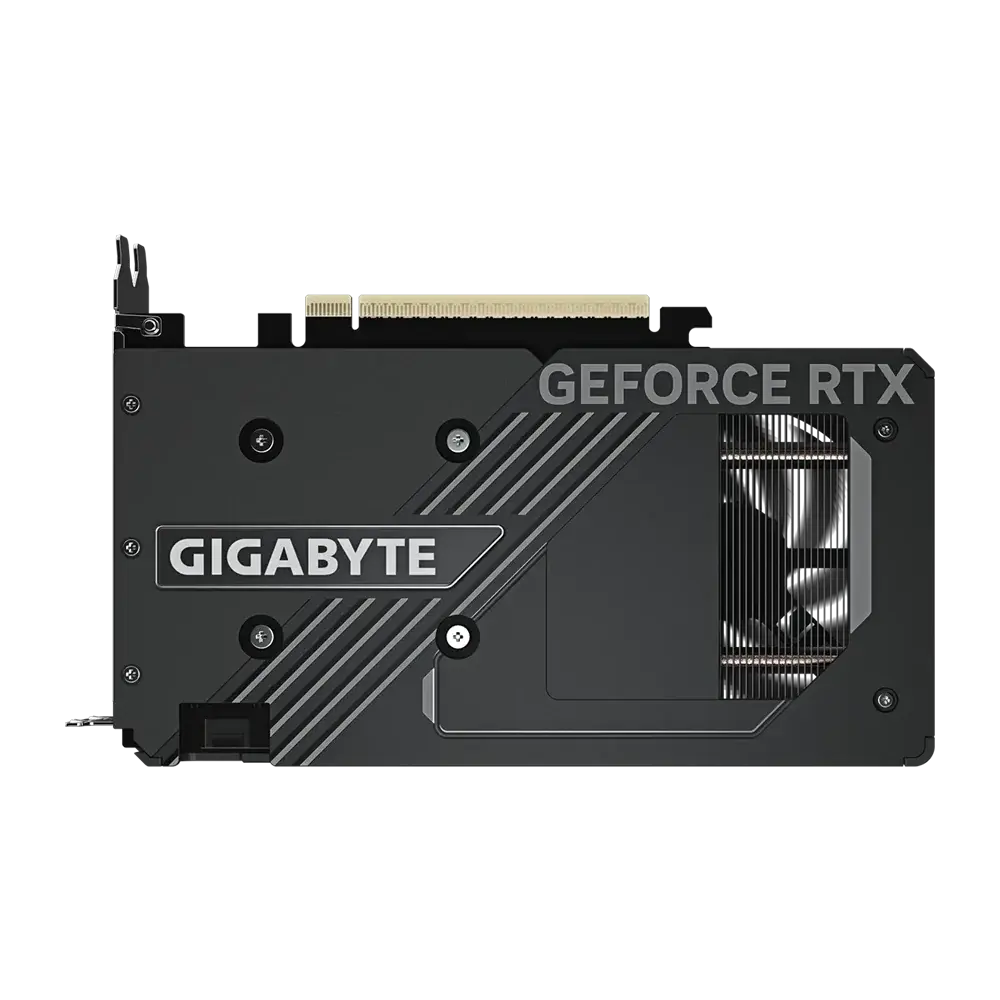

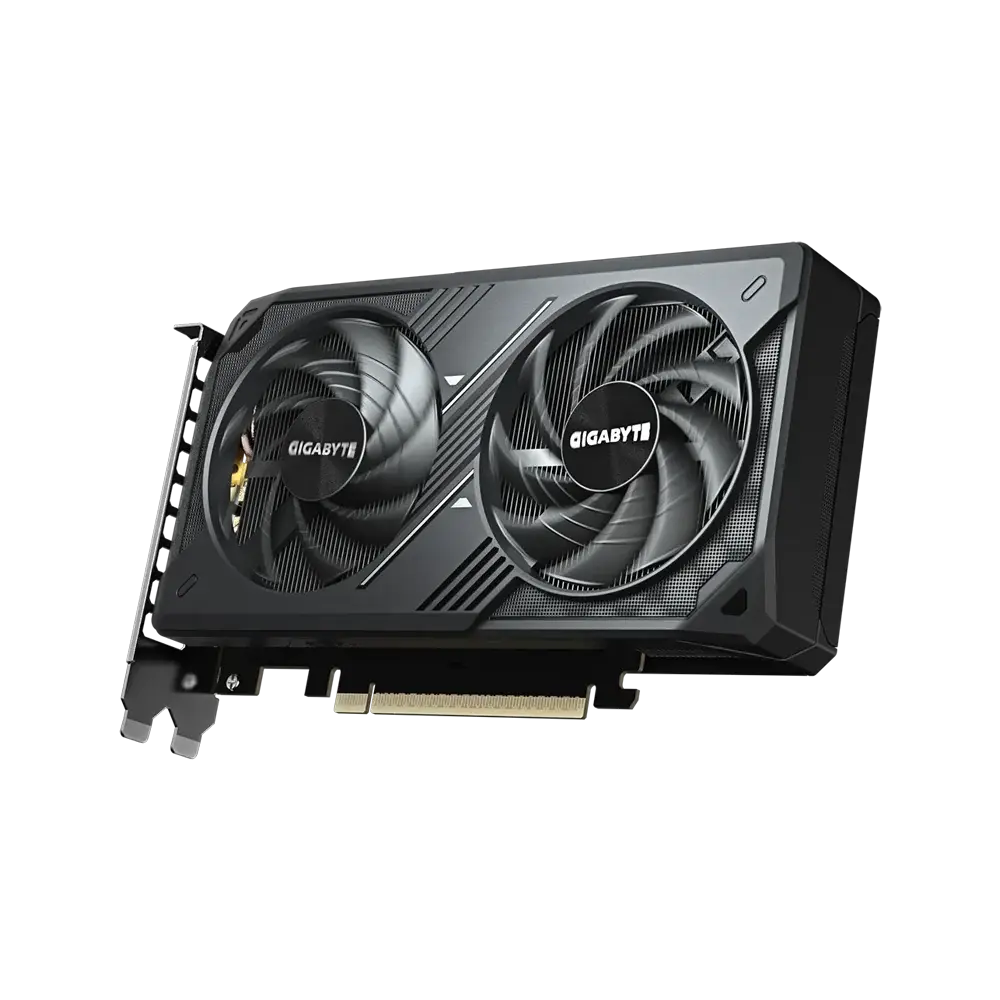

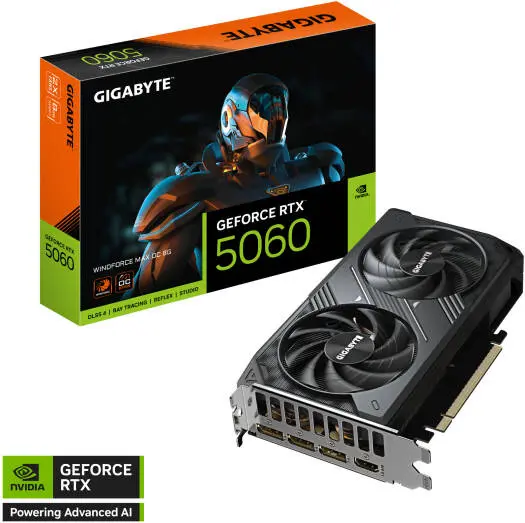

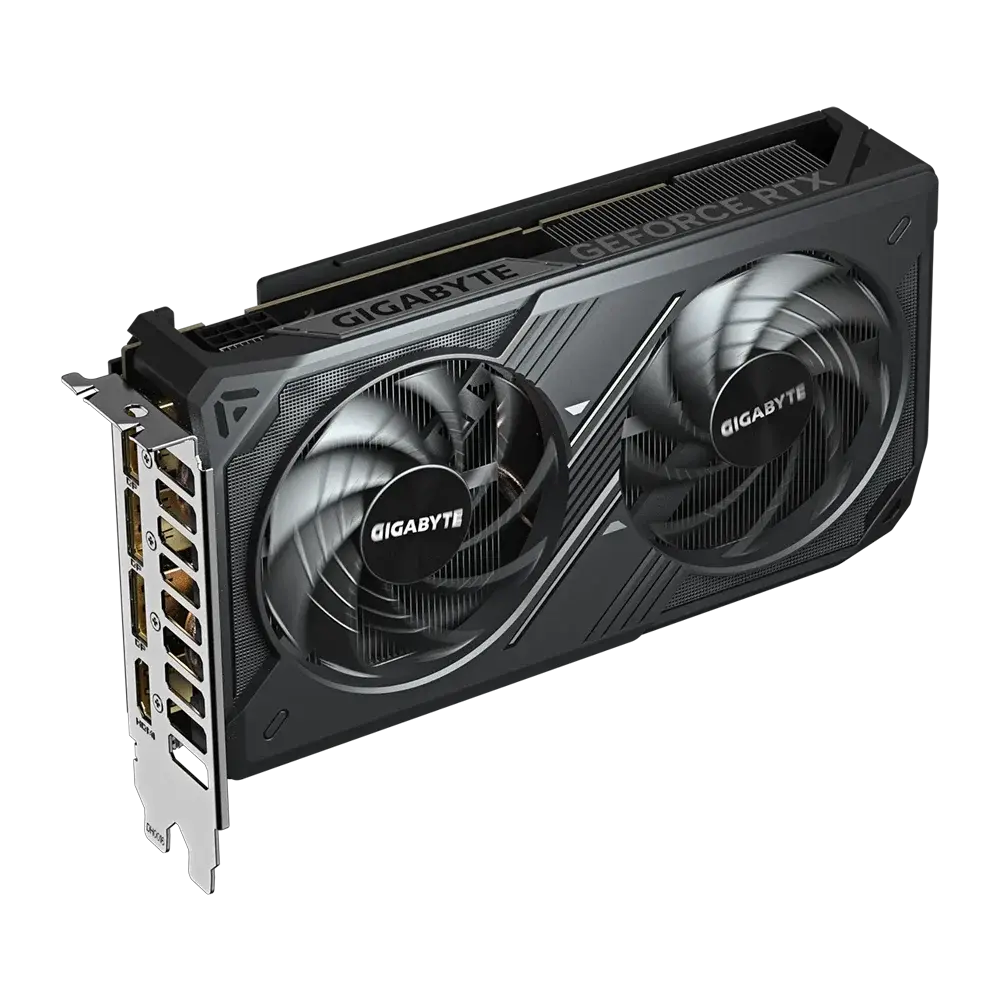

GIGABYTE WINDFORCE MAX GEFORCE RTX 5060 8GB OC GRAPHIC CARD-BLACK

Gigabyte WINDFORCE MAX GeForce RTX 5060 8GB OC GDDR7 Graphics Card

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

What are the benefits of Gigabyte Graphics Card ?

• WINDFORCE cooling system – Efficient heat dissipation for stable performance

• Hawk fan design – Higher air pressure and airflow with reduced noise

• Graphene nano lubricant – Longer fan lifespan and quieter operation

• Alternate spinning fans – Improved airflow and reduced turbulence

• Composite copper heat pipes and copper plate – Enhanced heat transfer

• 3D active fan – Semi-passive cooling with silent operation at low load

Graphics Processing

GeForce RTX 5060

Core Clock

2512 MHz (Reference card : 2497 MHz)

CUDA Cores

3840

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680×4320

Multi-view

4

Card size

L=199 W=116 H=40

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

550W

Power Connectors

8 Pin*1

Output

DisplayPort 2.1b *3

HDMI 2.1b *1

Accessories

Quick guide
