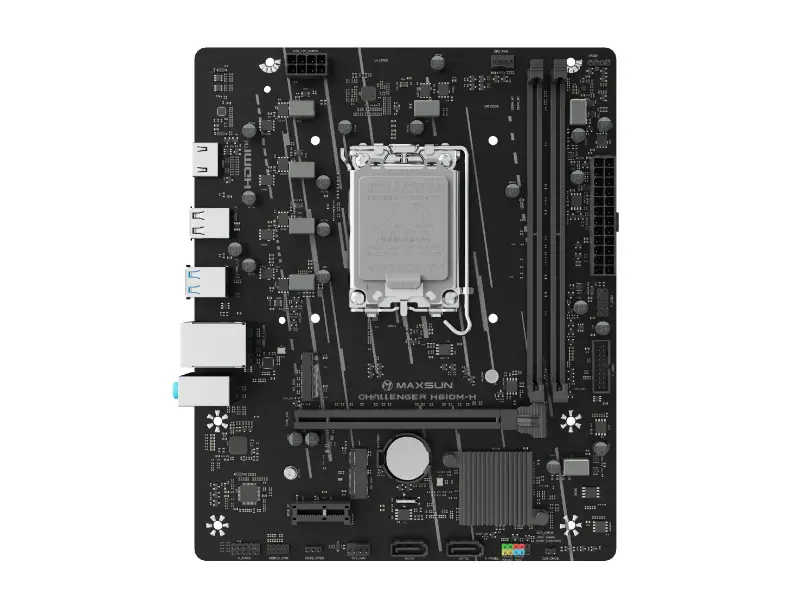

MS-Challenger H610M-H V1 DDR4 ATX Motherboard – Black

Model MS – Challenger H610M-H

Form Factor MicroATX (225 × 185mm)

CPU Socket Supports LGA1700 socket, compatible with Intel® 12th / 13th / 14th Gen CPUs

Chipset Intel® H610 Chipset

Memory 2 × DIMM DDR4 slots, up to 64GB total

Supports Dual-Channel Memory Technology

Supports 2133 / 2666 / 2933 / 3200MHz memory frequency

Supports Intel® XMP memory overclocking

Display Output 1 × HDMI™ 1.4 port, up to 4096 × 2160 @30Hz resolution

Expansion Slots 1 × PCIe X16 4.0 Slot

1 × PCIe X1 3.0 Slot

Audio Integrated Realtek ALC1220VA3 Audio Codec

Network Integrated Realtek 8111M LAN (10/100/1000Mbps)

1 × RJ45 Ethernet Port

Storage 1 × M.2 Slot (Supports 2242/2280 PCIe X4/X2 3.0 NVMe SSD only)

2 × SATA 3.0 Ports

USB Ports Rear I/O:

2 × USB3.2 Gen1 Ports

3 × USB2.0 Ports

Internal Headers:

1 × USB2.0 Header (for 2 ports)

1 × USB3.2 Gen1 Header (for 2 ports)

Power Connectors 1 × 24-pin ATX Main Power Connector

1 × 8-pin ATX 12V CPU Power Connector

Others 1 × System Fan Header

1 × CPU Fan Header

1 × Front Panel Header (F_PANEL)
